Description
The Specna Arms Prime™ model series combines Specna Arms' years of experience and commitment to airsoft gun development. The Prime model series embodies this development in one package, offering a top-quality airsoft gun at a cost-effective price. The Specna Arms Prime guns combine the quality of the EDGE™ series with the performance of new internal components, ensuring the most demanding enthusiasts an excellent gaming experience straight out of the box. Traditionally, long-time enthusiasts have taken new airsoft guns to the tuning shop immediately after purchase, but the Prime model series changes this.
Cost-effective PRIME version with High Torque motor
Specna Arms has released a more affordable motor version as part of its PRIME product family. The High Torque motor refers to a traditional brushed DC motor, which is equipped with very strong magnets and a high-torque winding. The Specna HT motor is brought into the Prime range from Specna's older EDGE 2.0 range. The Prime with the High Torque motor loses to the Prime model with a brushless motor in battery life, a little in trigger response and rate of fire.

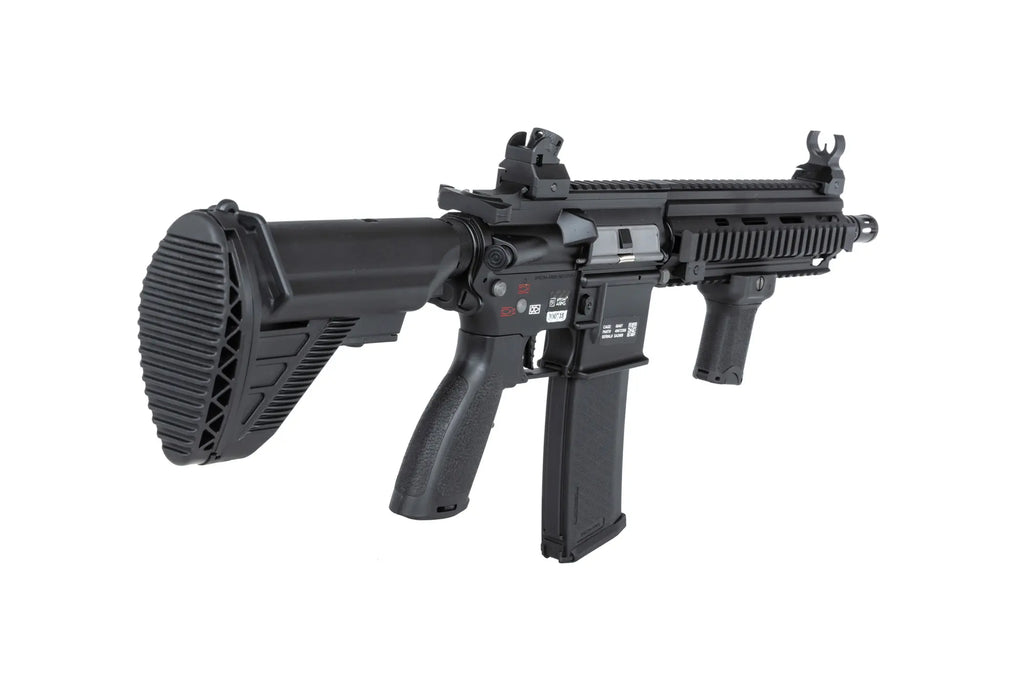

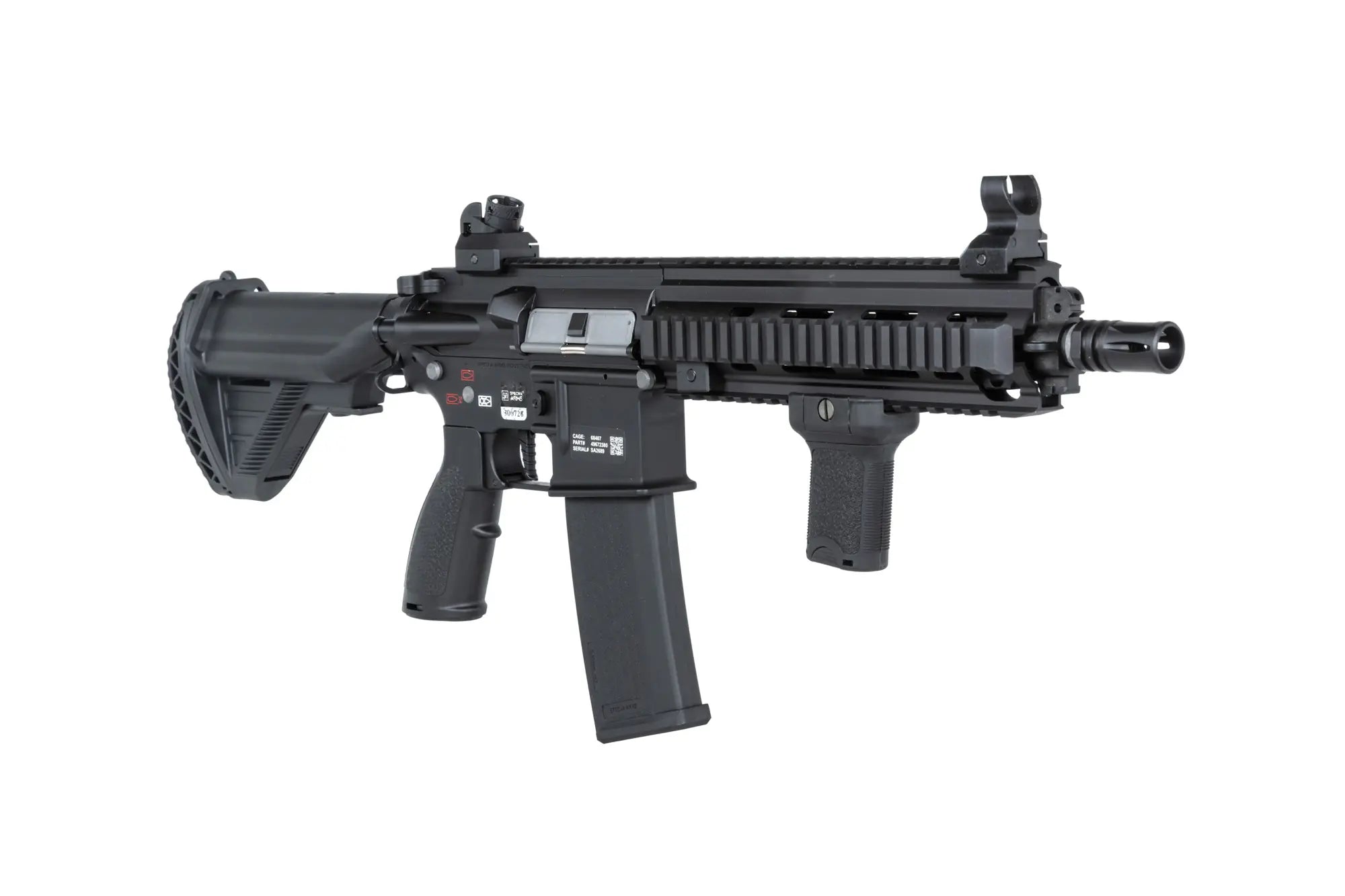

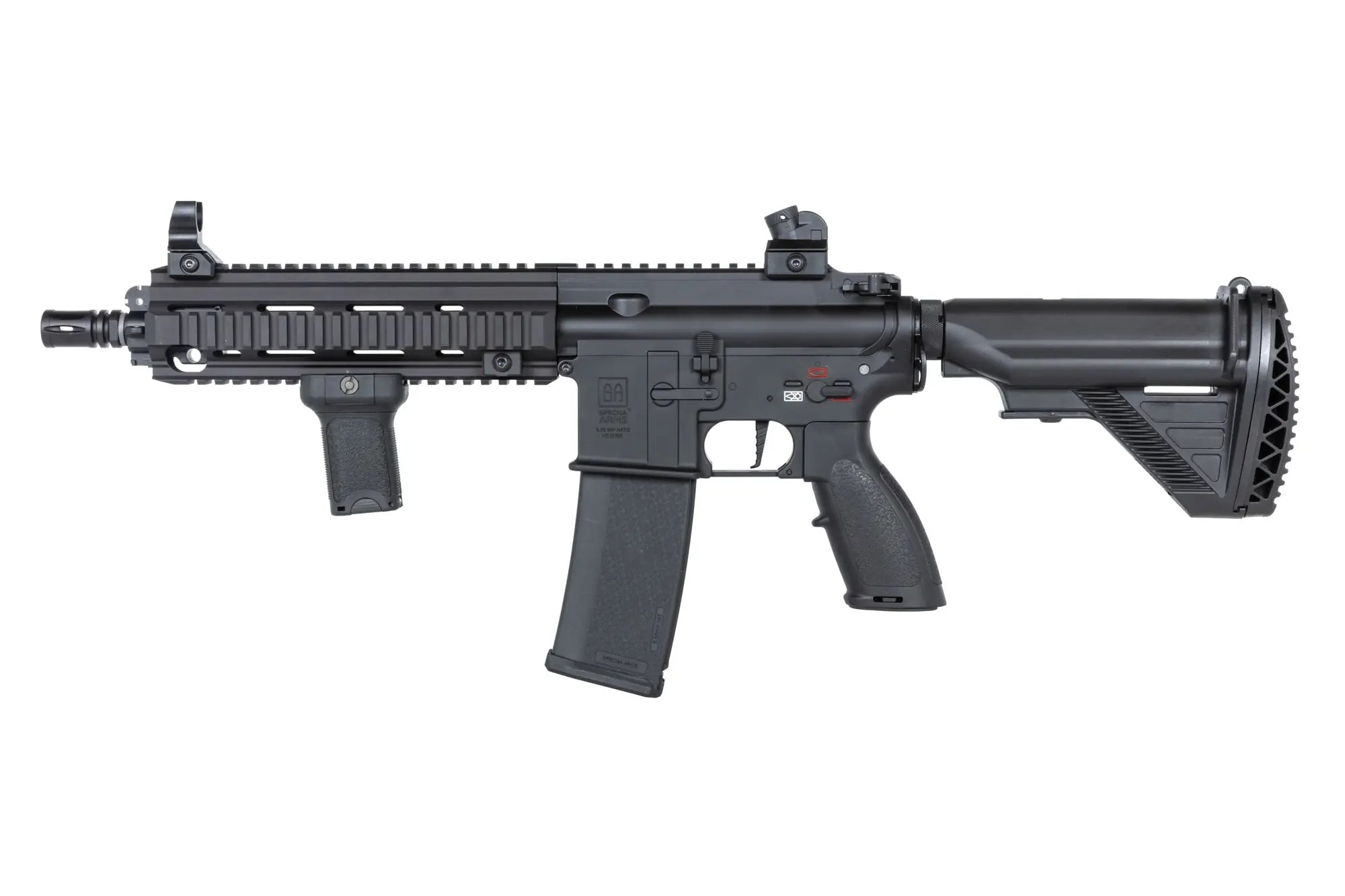

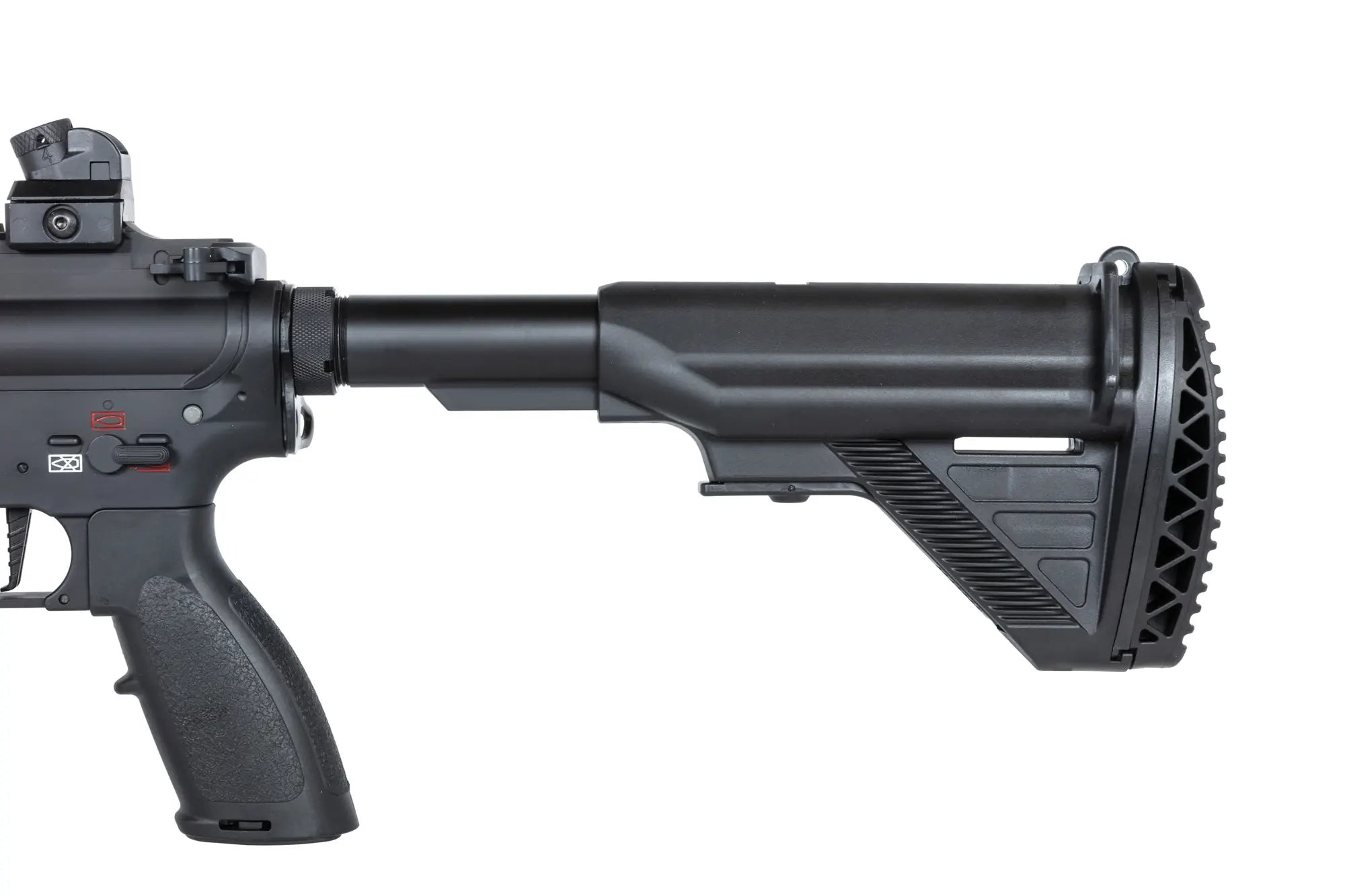

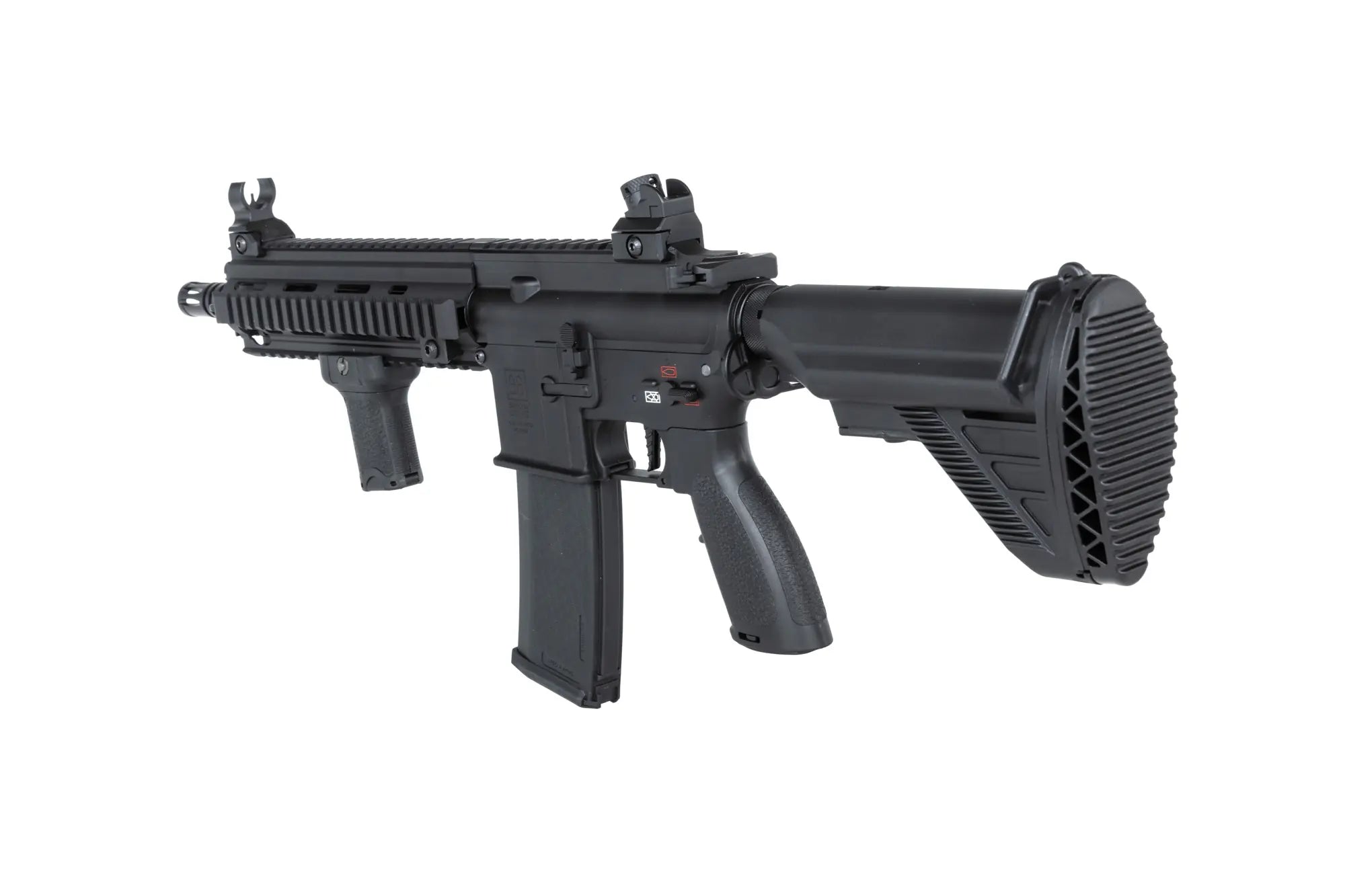

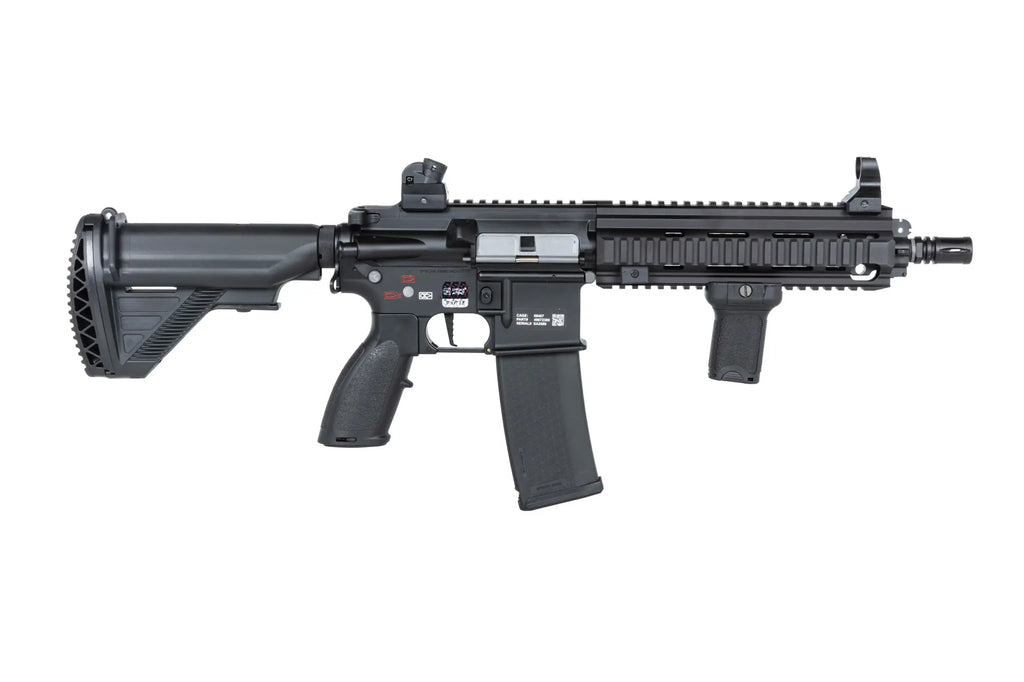

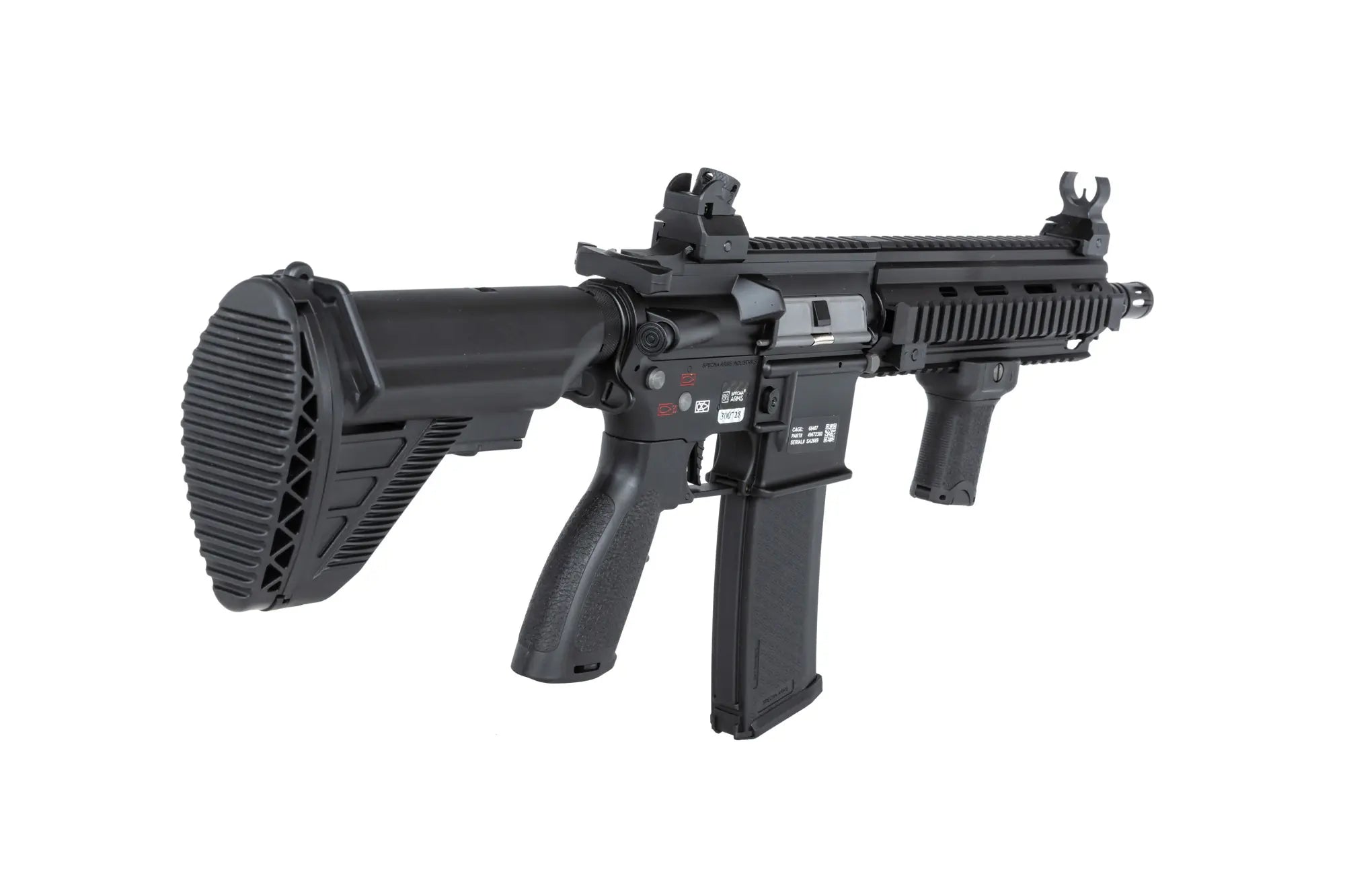

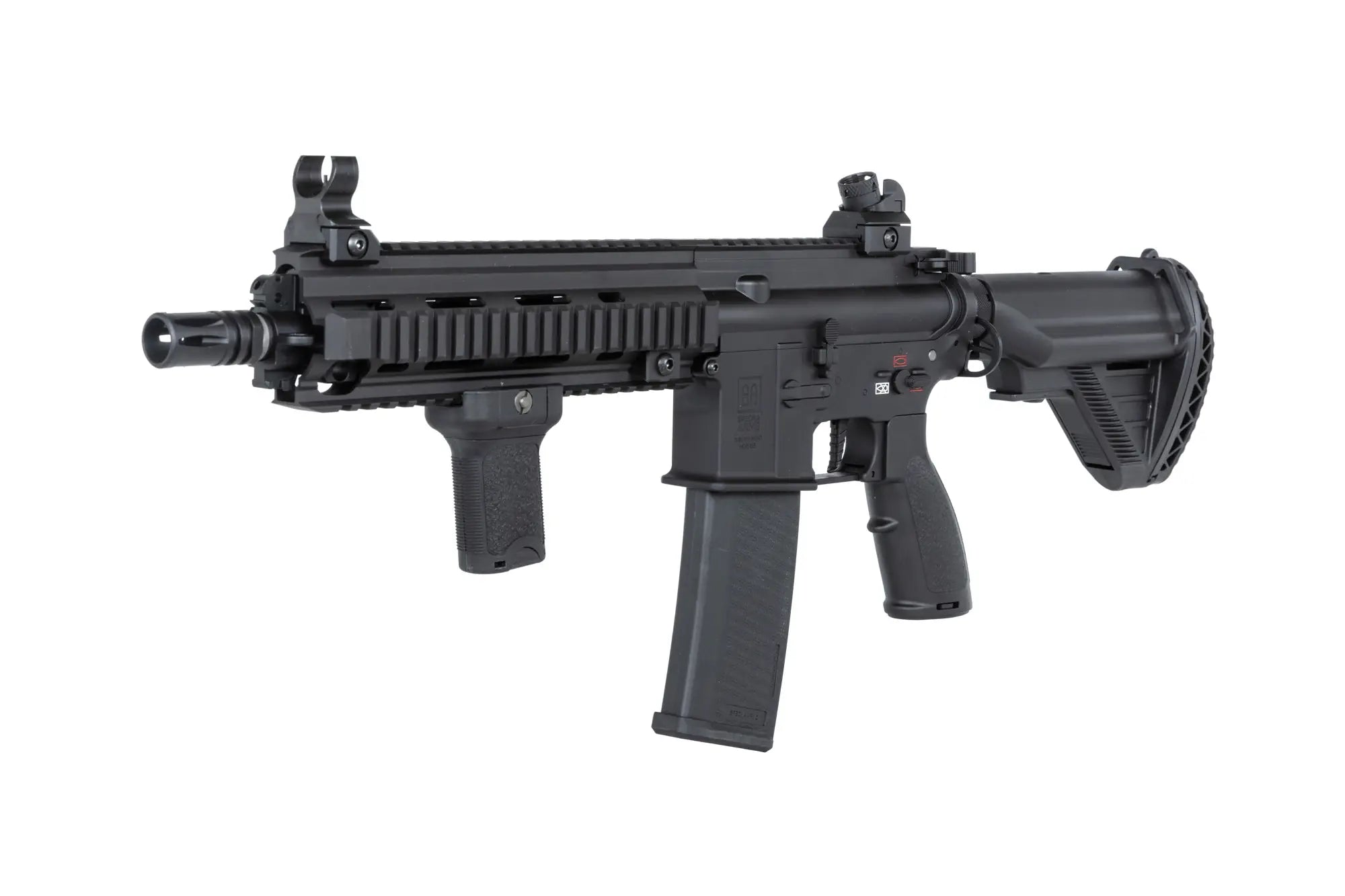

Specna Arms SA-PH20 PRIME™ HAL™ ETU electric gun, HT motor

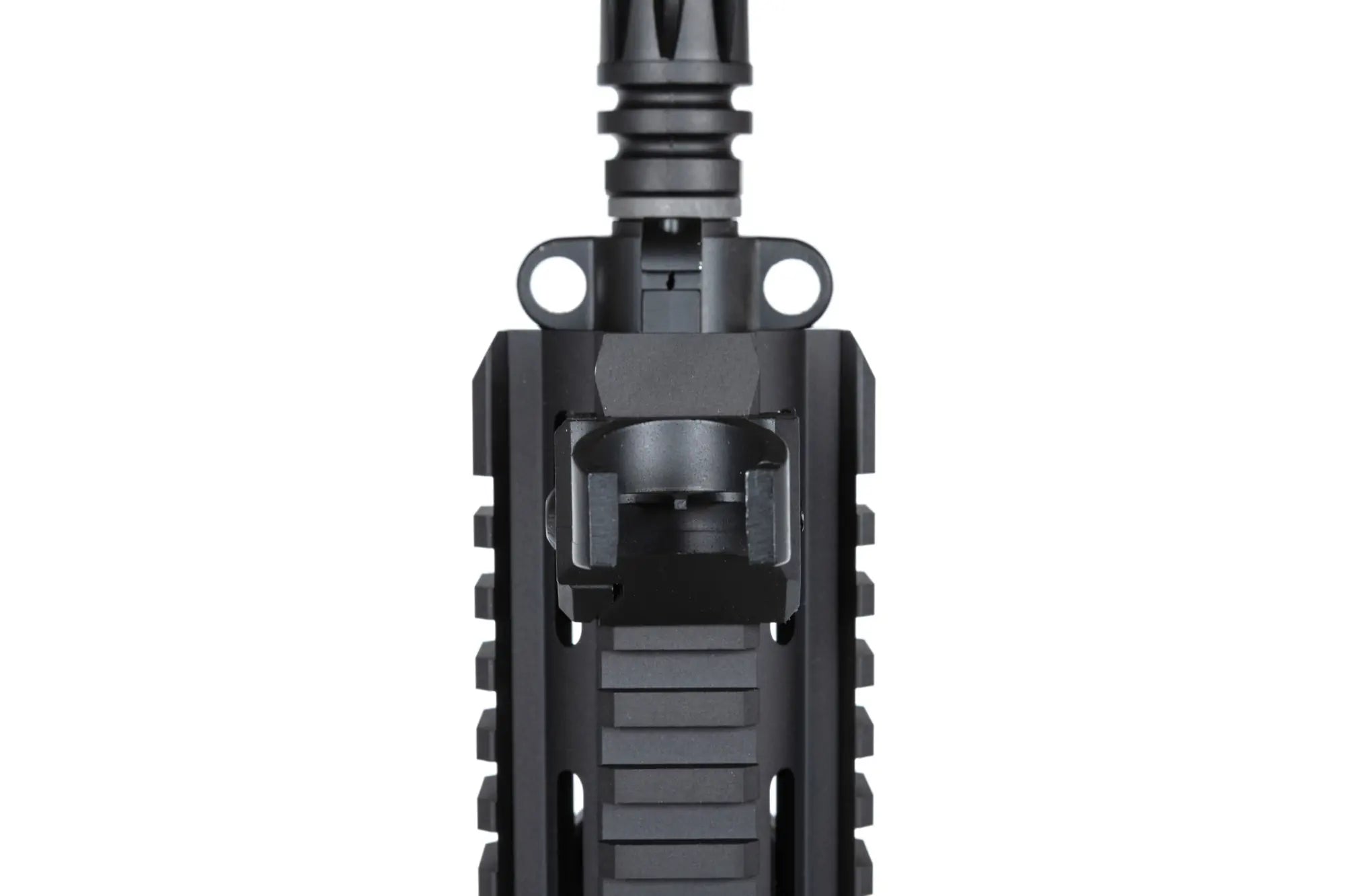

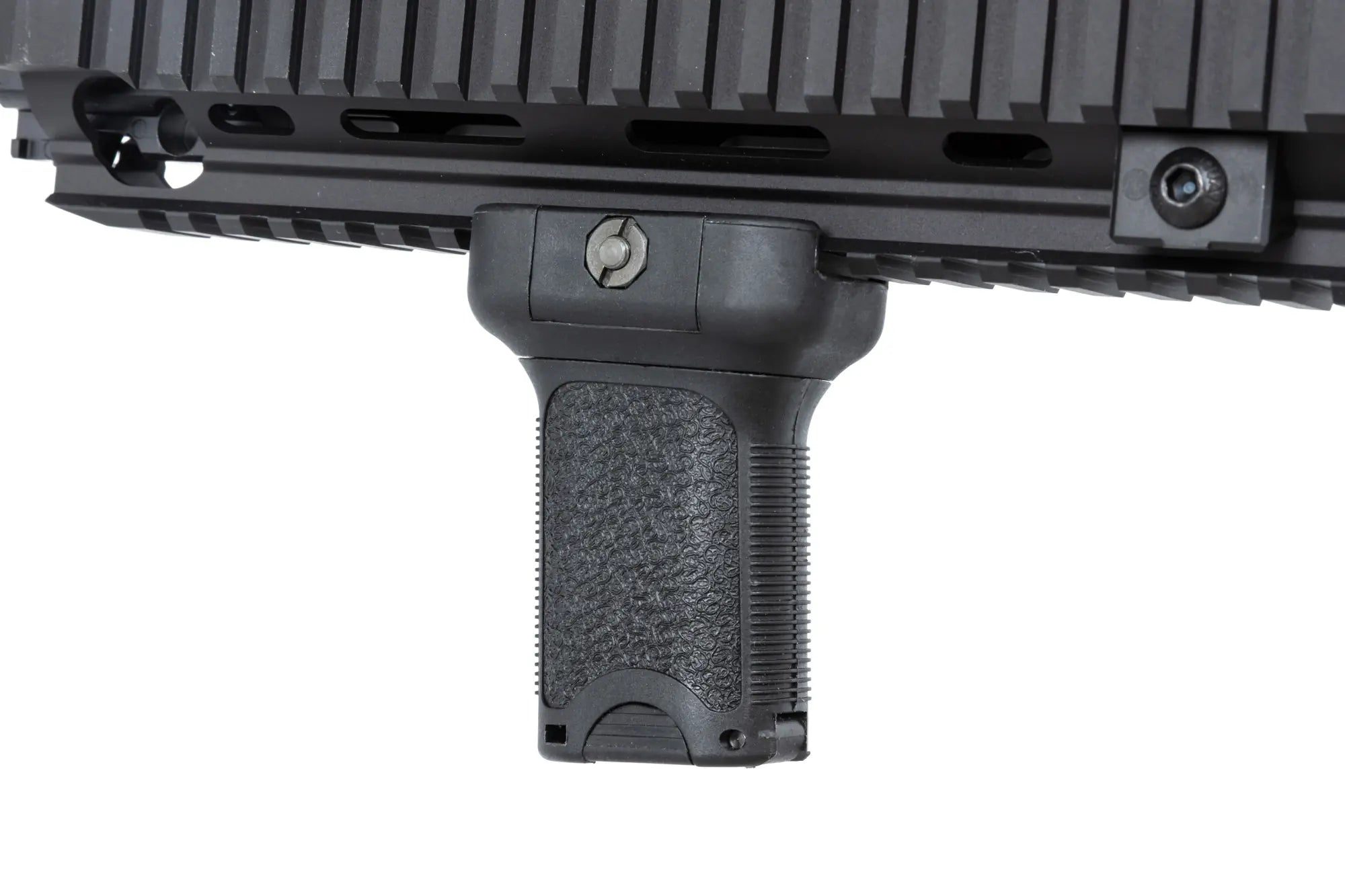

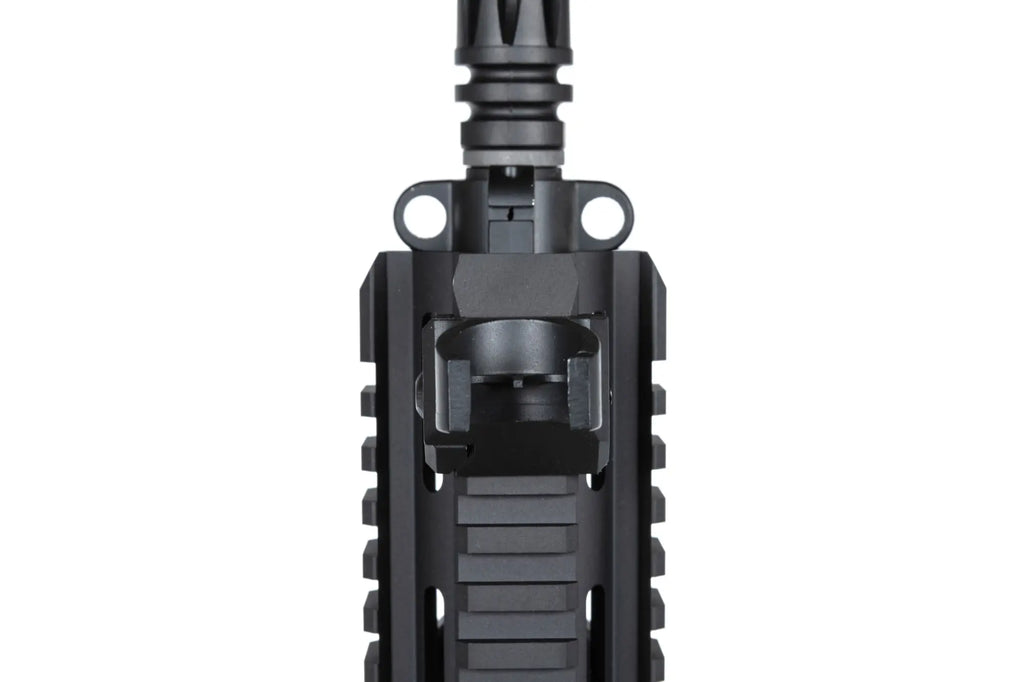

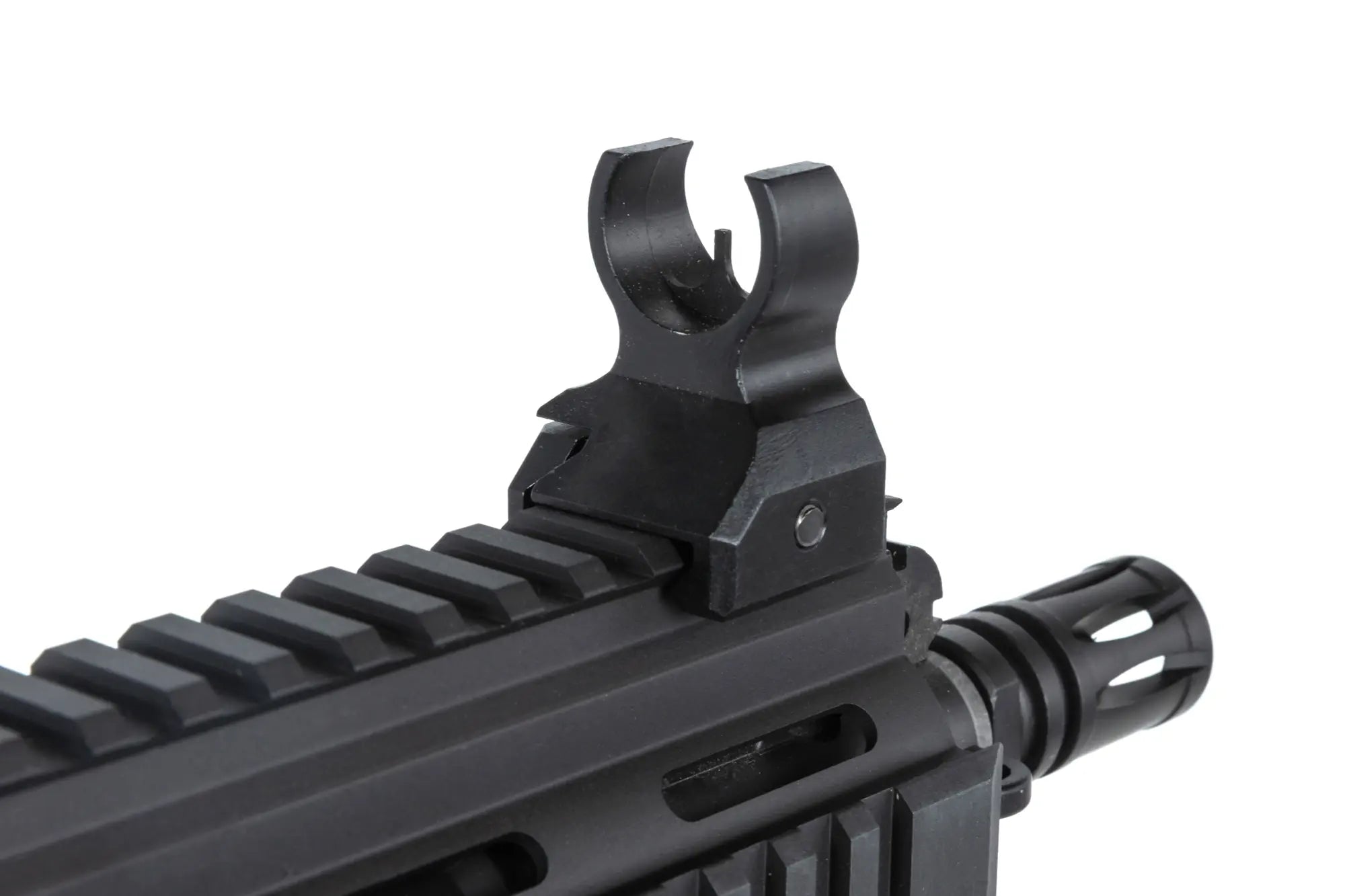

The SA-PH20 Prime foregrip uses an HK-type RIS/Picatinny compatible aluminum rail system. On top of the rail is a long, full-length RIS mounting rail for attaching various sights. The other surfaces of the rail have standard RIS/Picatinny rails, which allow for attaching additional devices directly to the rail. At the end of the outer barrel, there are 14mm CCW threads under the muzzle flash suppressor for installing a silencer or light strip device.
Main features:
- 6.02 mm steel precision barrel : Improves accuracy and shot repeatability.
- TDC Magnus™ Hop-Up : Rotary-style TDC hop-up chamber ensures precise and stable hop-up thread for the bullet (protected by European patent number 015052069-0001)
- Helium™ Flat Hop rubber : Enables strong spin even for heavy balls.
- ESA2™ Quick Spring Change: Allows for quick adjustment of weapon power by changing the spring without tools. Included with M90, M120 and M135
- Specna Arms HAL FRONT: Trigger-programmable Specna Arms HAL electronics unit
- Aether™ Gearbox : Heavily reinforced gearbox housings incorporating multiple features such as spring release, pre-alignment and AoE inspection windows
- Reinforced lower frame: The material strength of the lower frame has been increased compared to previous models
- Nano Coating : The body does not scratch easily and maintains a stylish appearance.

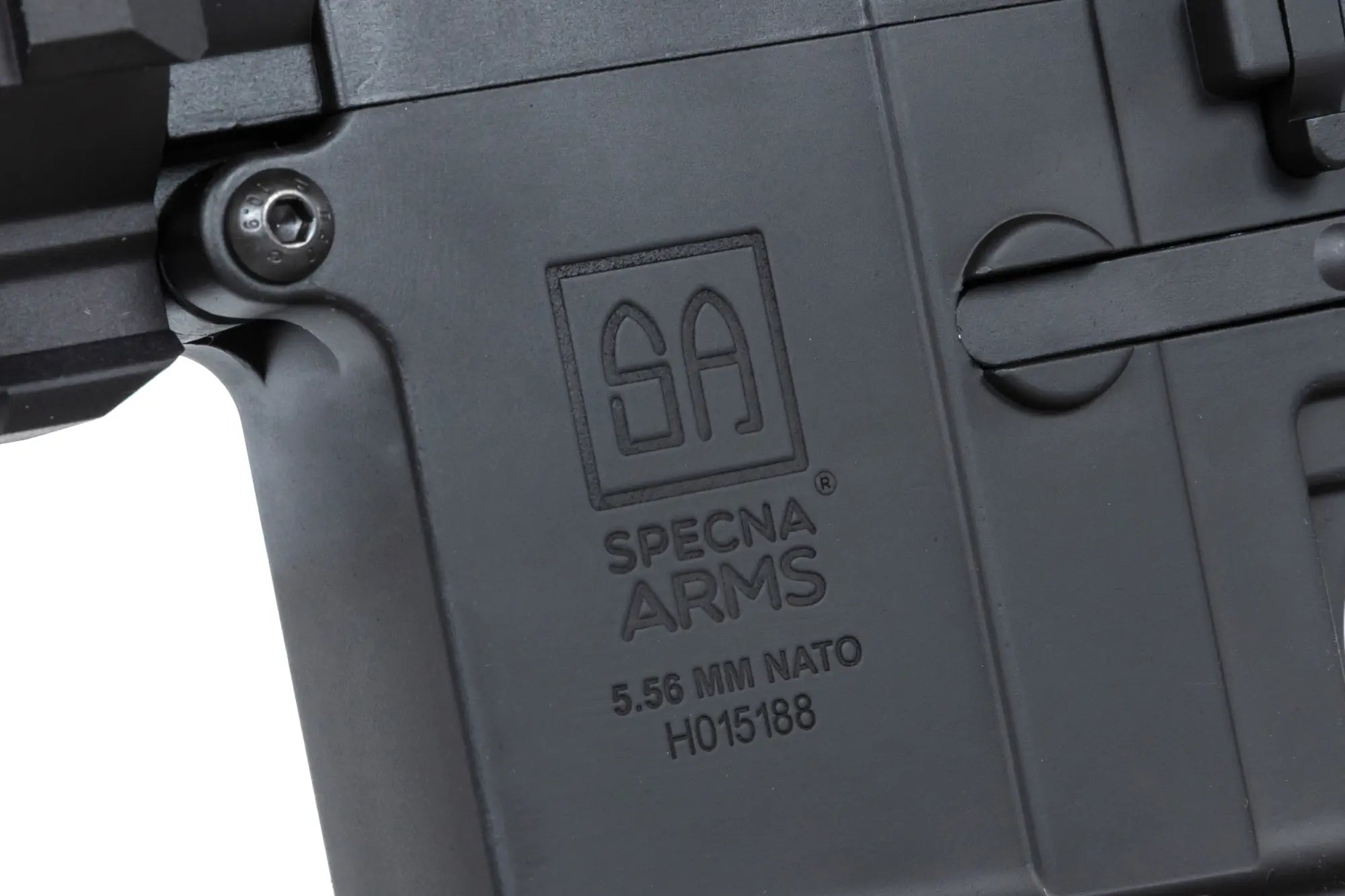

- Serial number and hologram : Unique chassis serial number
Aether ™ Gearbox parts:
- Reinforced polymer piston with steel teeth
- Aluminum cylinder head and nozzle tube
- Steel cylinder
- Ball bearing spring guide
- 16:1 CNC steel sprockets
- 8 mm J-Cage ball bearings (motor and piston gear), 8 mm plain bearings (center gear)
- 8mm plain bearings (middle gear)
- High Torque 22TPA motor with neodymium magnets

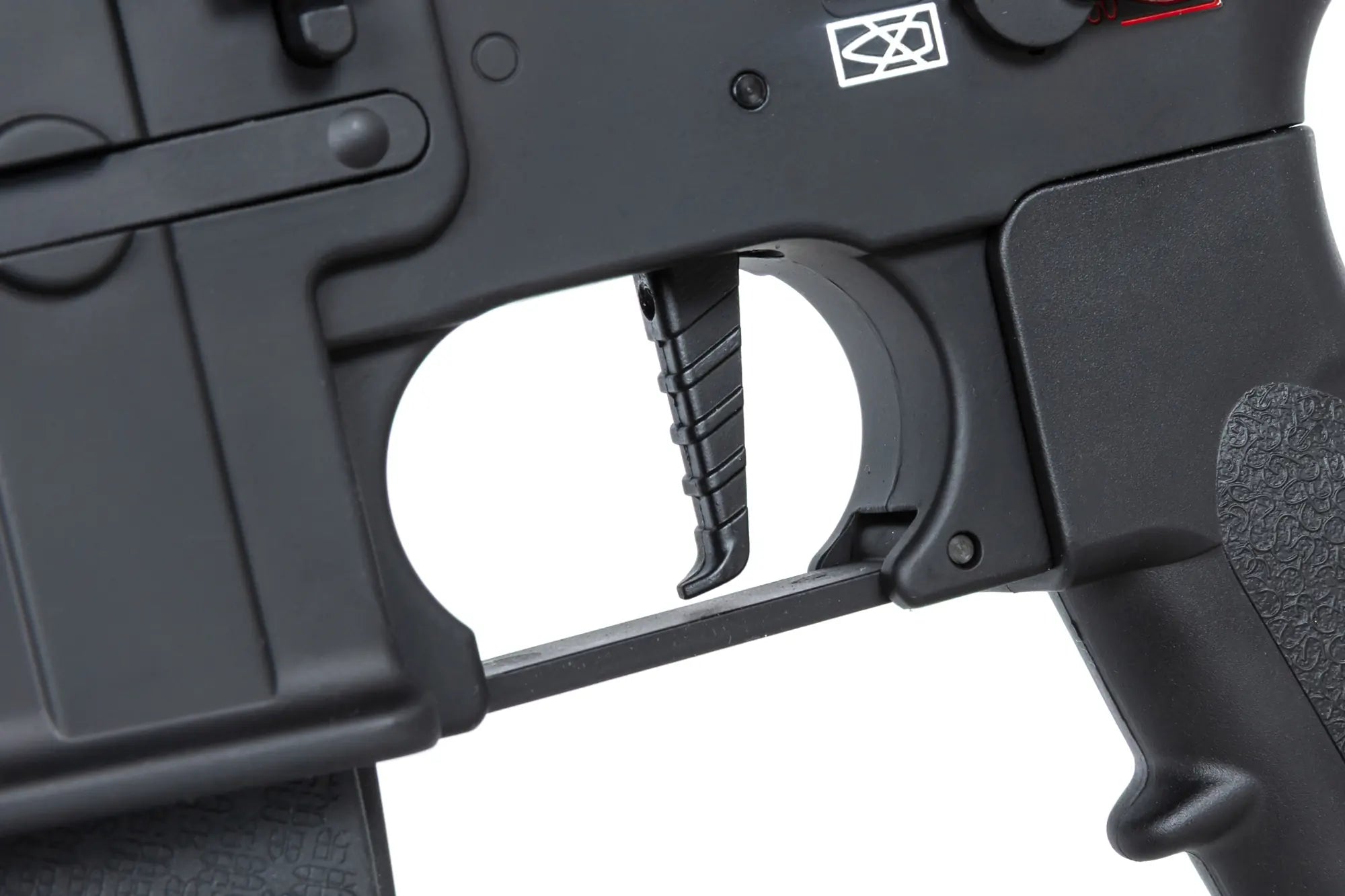

- Trigger made by Mancraft
- Factory installed HAL™ ETU module
- Improved ESA2™ quick-adjust spring change
- Protected by European patent number: 015044865-0001
HAL™ ETU module features:
- Trigger detection using magnetic sensors and the Hall effect
- Active brake
- Binary trigger function
- Adjustable trigger sensitivity (5 levels, 20-100%)
- Adjustable pre-cocking (6 levels)
- AUTO mode programming (full auto, semi, 3 shot burst, 5 shot burst)
- SEMI mode programming (semi, binary, AUG, sniper rifle)
- Easy programming with a trigger
- Low battery warning

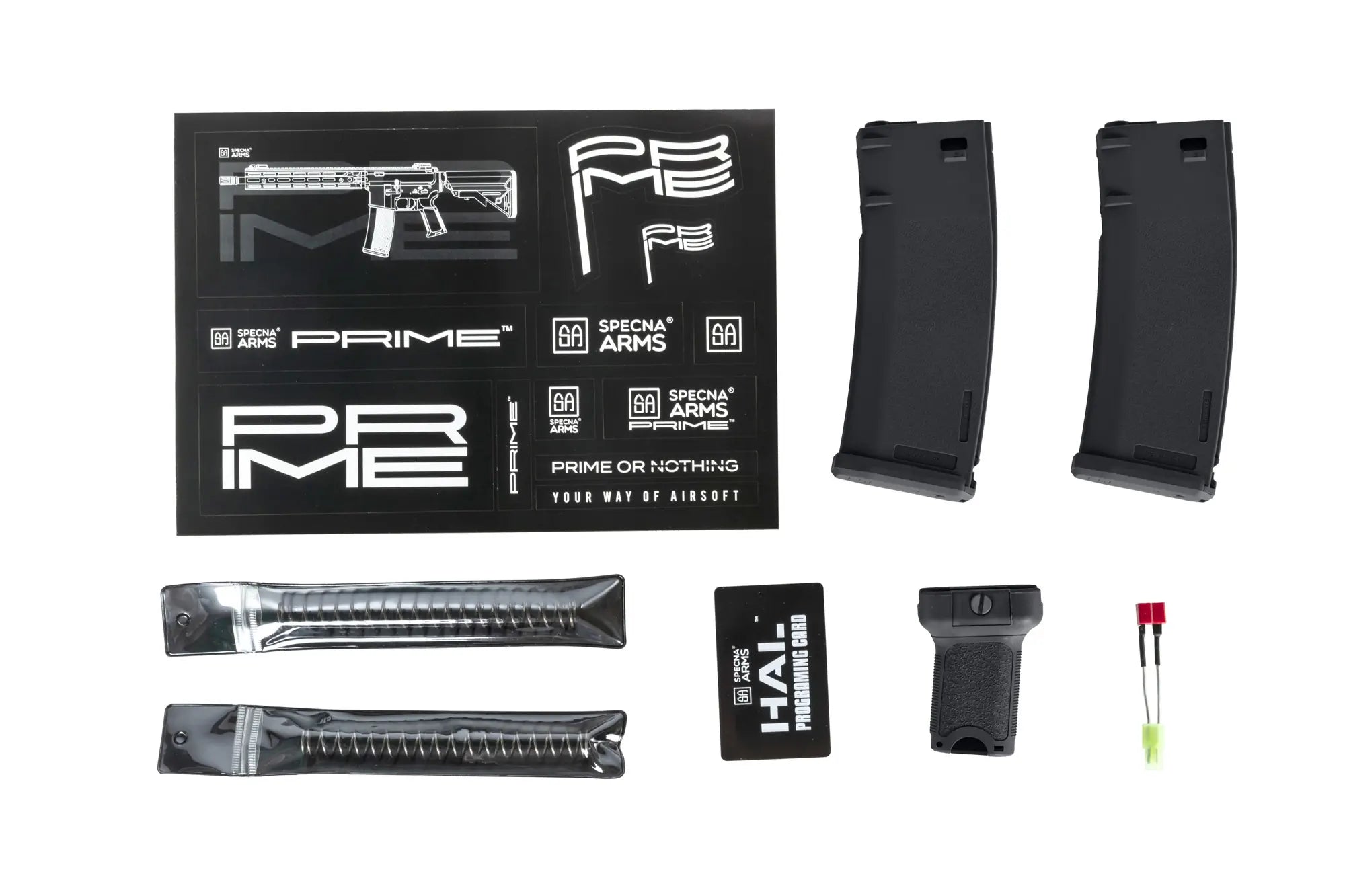

In the package:
- Specna Arms Prime electric gun
- 2x mid-cap magazine (120 bullets per magazine)
- Magazine loader
- Ramrod
- Link to instructions
- Strings
- M90 spring
- M120 (factory installed)
- M135 spring
Note: Calibrating the HAL™ trigger before use:
This airsoft gun is equipped with the HAL ™ system and before using the gun, the trigger must be activated. Activation is done as follows:
|
|
Introduction: 1. Turn the gun's fire selector to the "SAFE" position 2. Connect the battery to the gun 3. Wait three (3) seconds until the gun emits a "beep" sound. 4. Press the trigger all the way down for five (5) seconds until the gun emits a "beep" sound. This indicates that the trigger has been successfully activated. |
Read more:
HAL manual EN
| Name: | SA-PH20 PRIME™ HAL™ ETU electric gun, HT motor |
| Manufacturer: | Specna Arms |
| Output energy: | approx. 0.90J /1.6J / 1.8J |
| Starting speed (0.20g): | nn 95 / 125 / 140 m/s |
| Frame: | Metal |
| Magazine size and type: | 125 bullets, mid-cap |
| Gearbox: | V2 |
| Hop up: | Adjustable, Magnus TDC hop-up unit |
| Blowback: | No |
| Weapon length: | 705 / 790mm |
| Inner barrel length: | 270mm |
| Weight: | 3205g |
| Power: | Electric |
| Compatible battery/gas type: | 7.4v or 11.1V Deans/T-connector battery |
| Engine: | Long |
| Fire forms: | Programmable as desired |
| Included in the package: | Gun, 2x mid-cap magazines, magazine loader, cleaning rod, replacement springs, mini-jack adapter |
