Description

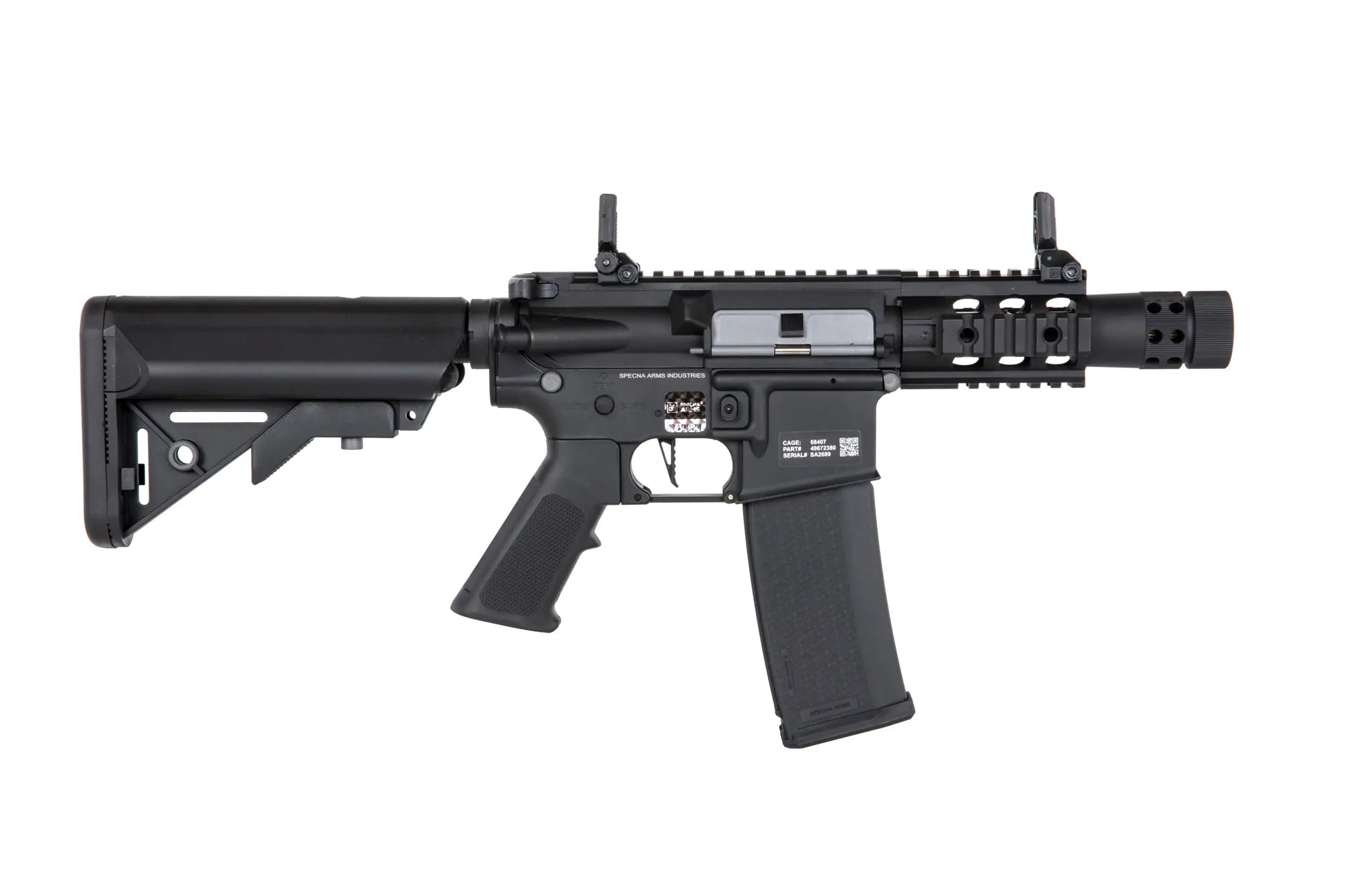

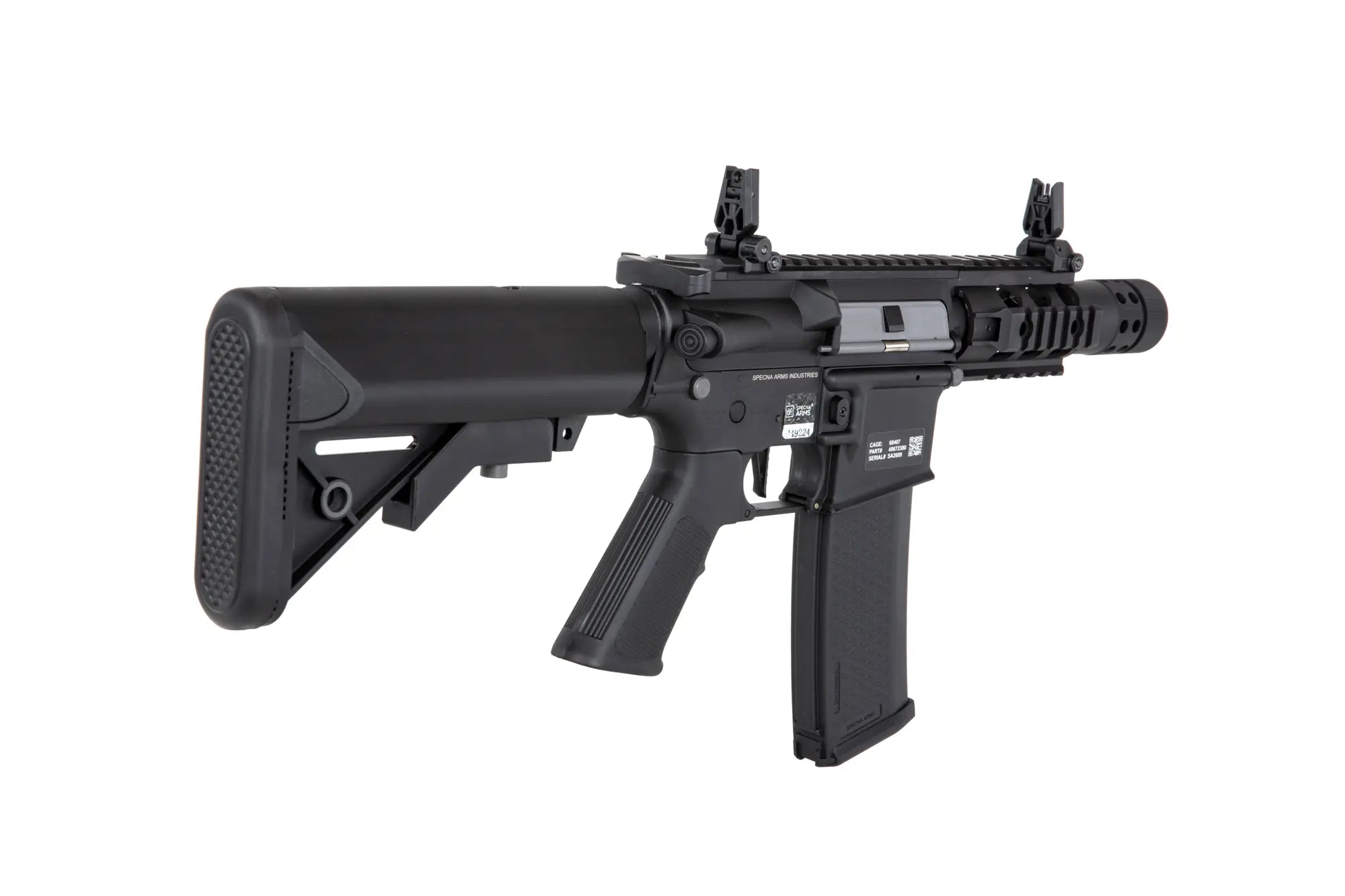

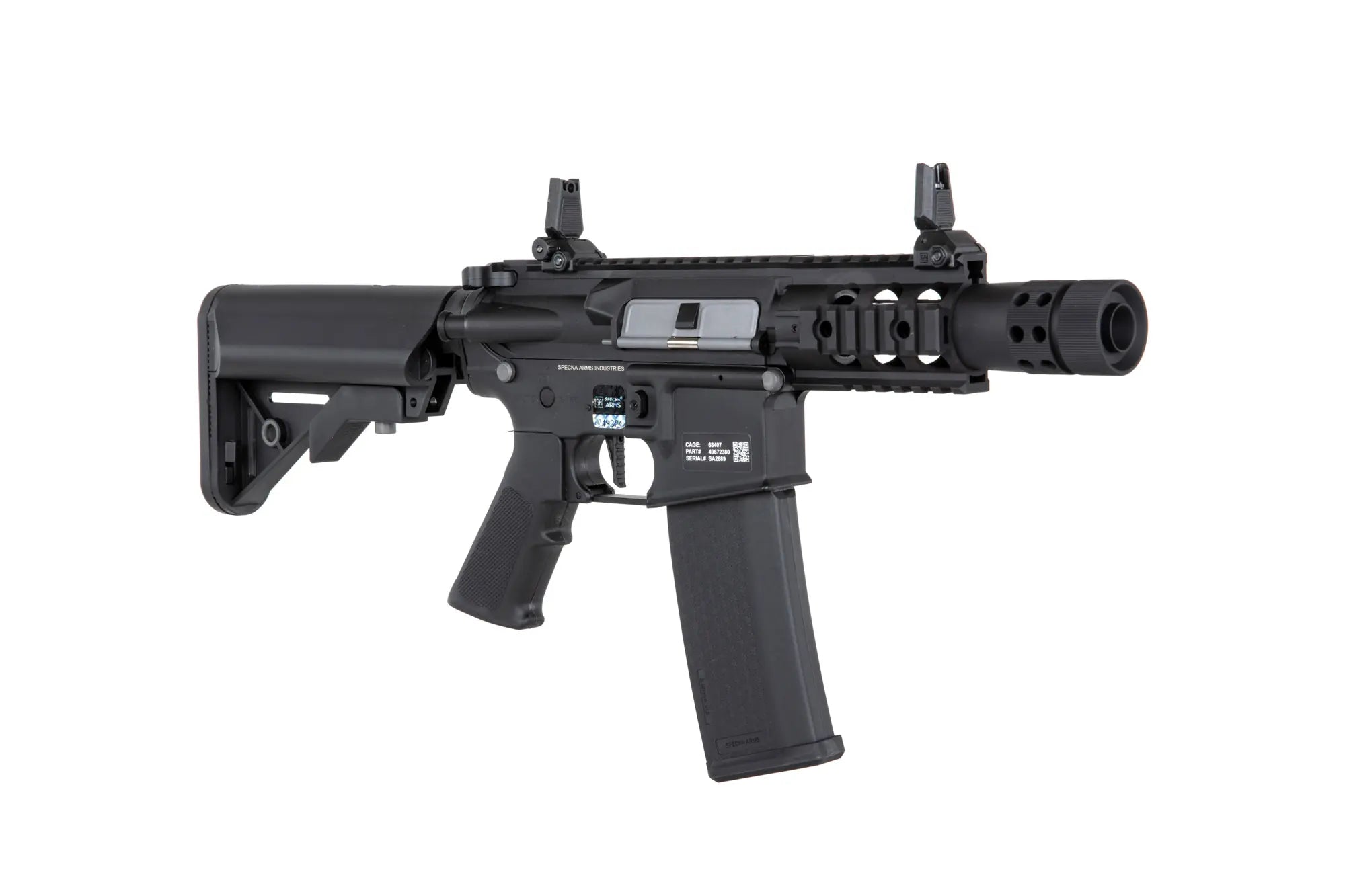

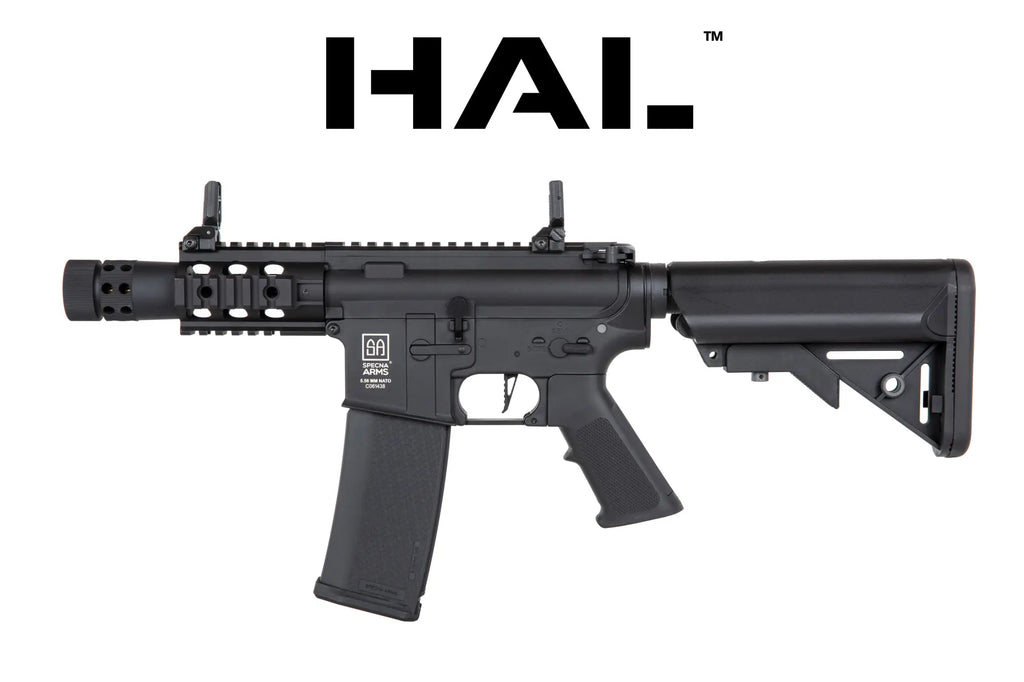

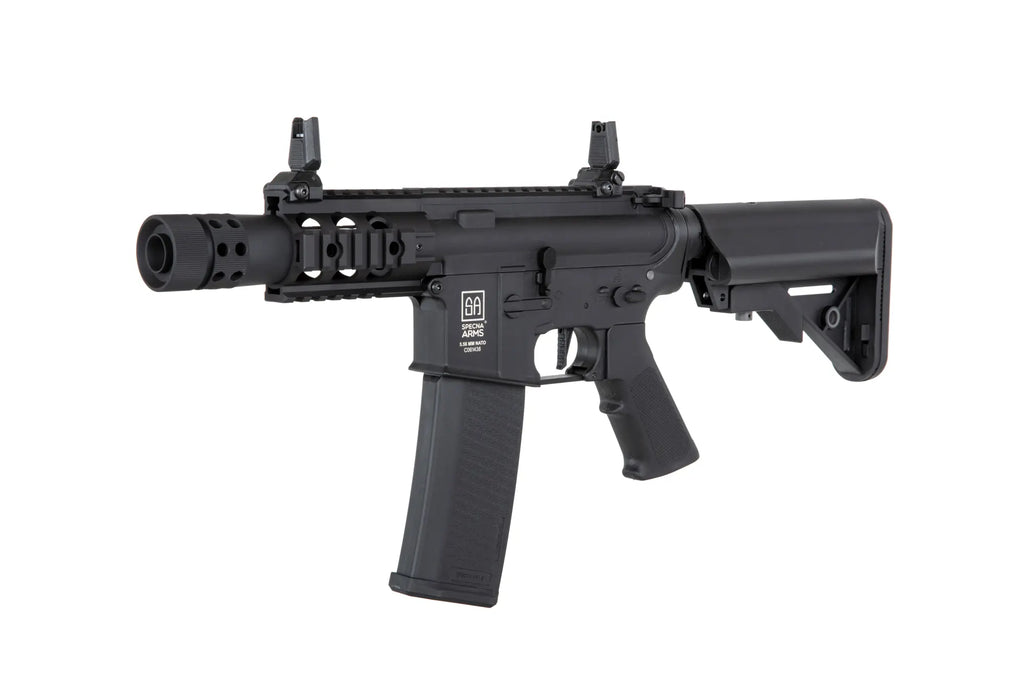

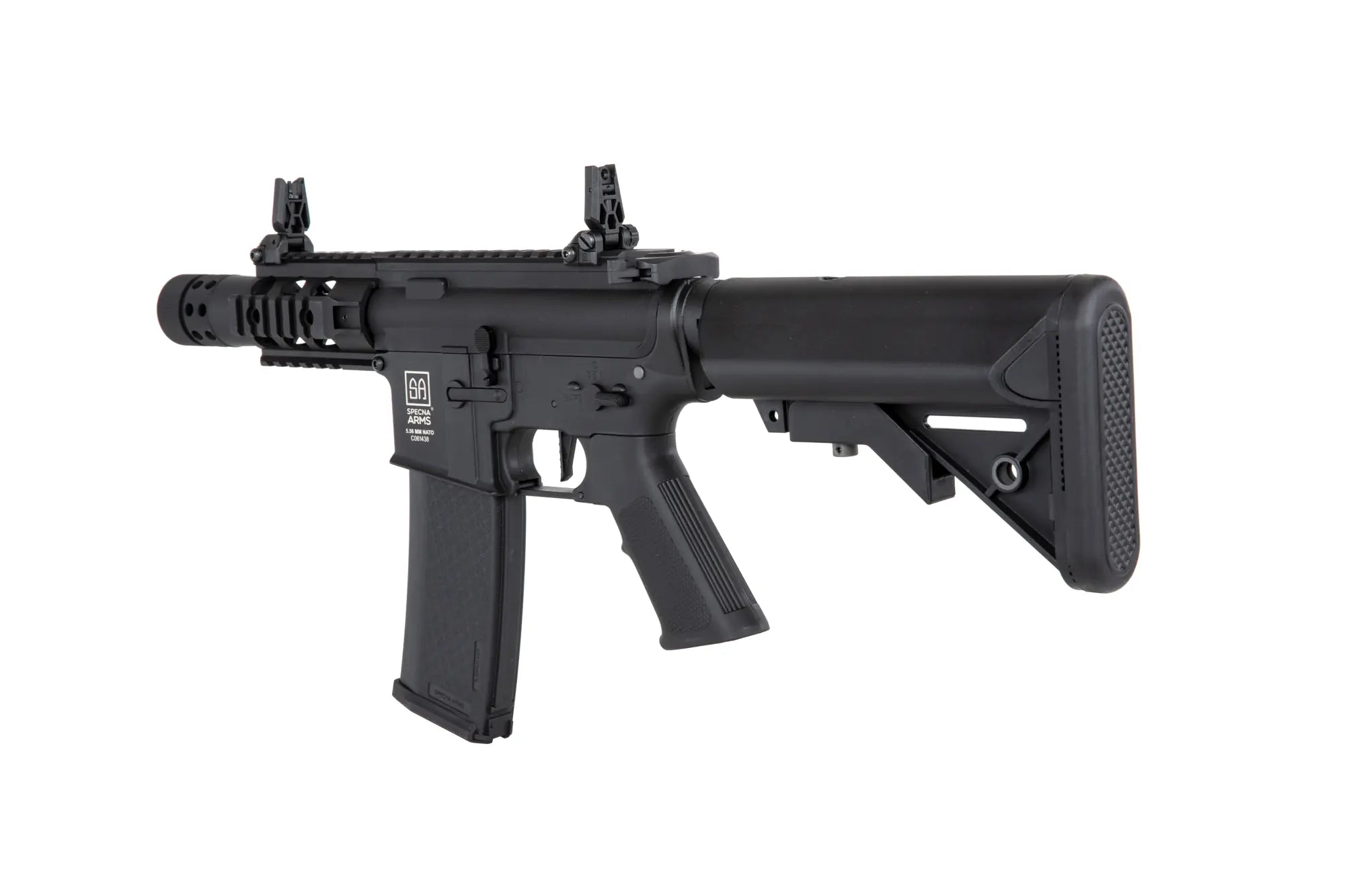

Specna Arms SA-C10 CORE HAL ETU electric gun represents the latest version of the CORE series. CORE electric guns are composite-framed airsoft replicas equipped with exceptionally high-quality mechanisms in this price range. All parts of the gun that are subject to greater stress or have weaker material strength are made of metal. The gun's frame, buffer tube and SF-type crane stock offering a large battery compartment, foregrip and pistol grip are made of nylon fiber-reinforced polymer plastic. The barrel, muzzle flash suppressor, charging handle and belt loops are made of metal.

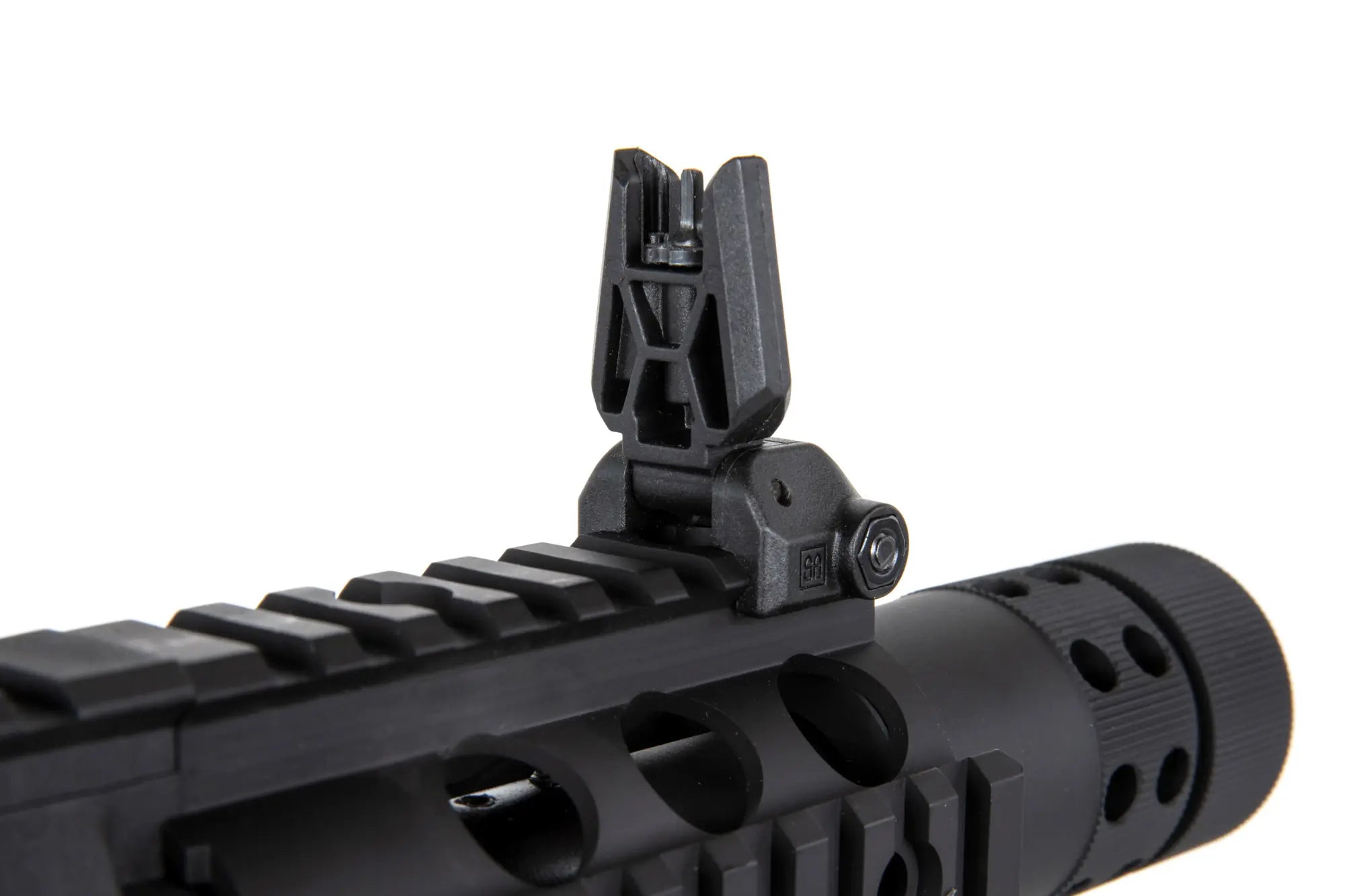

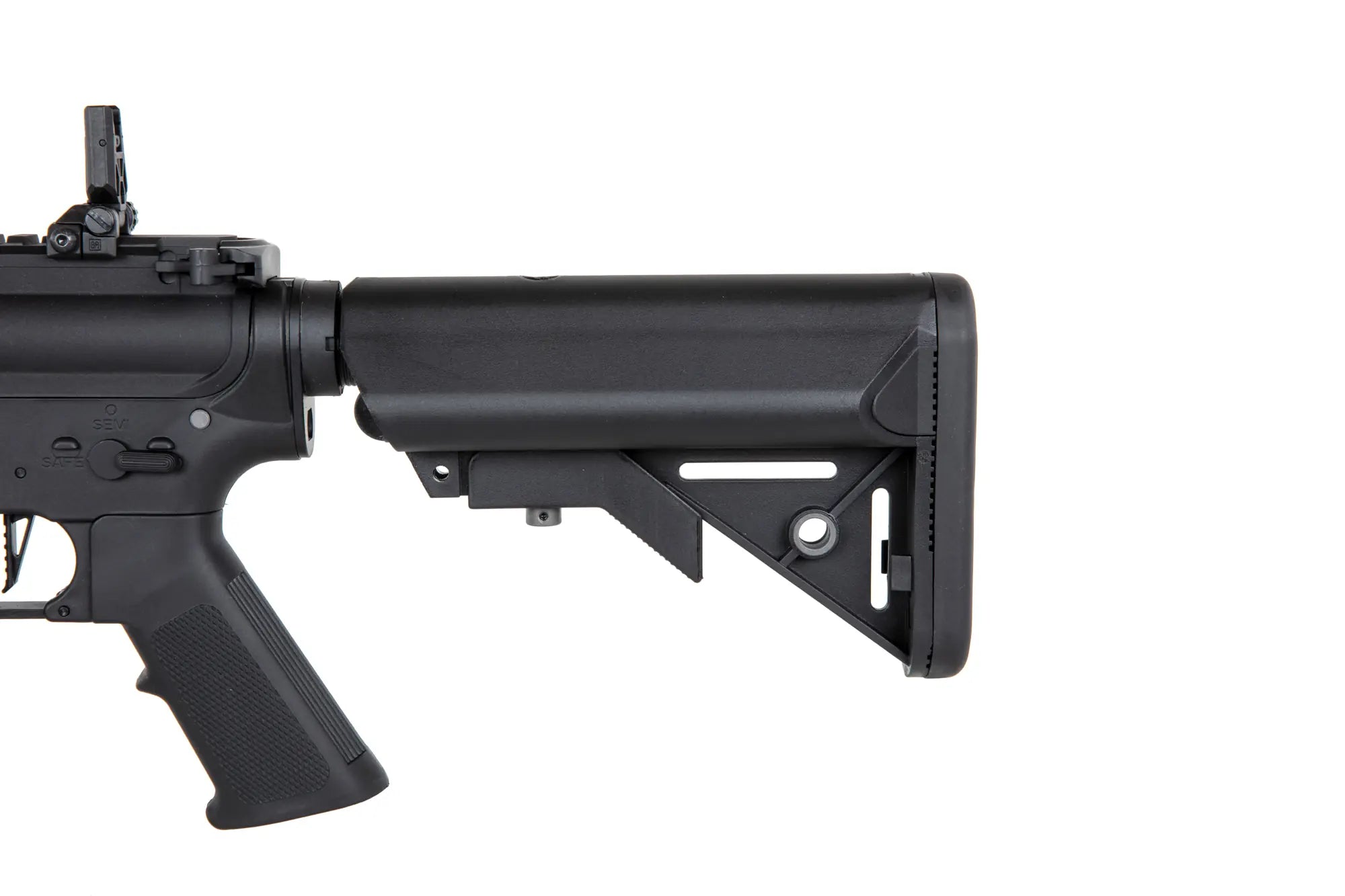

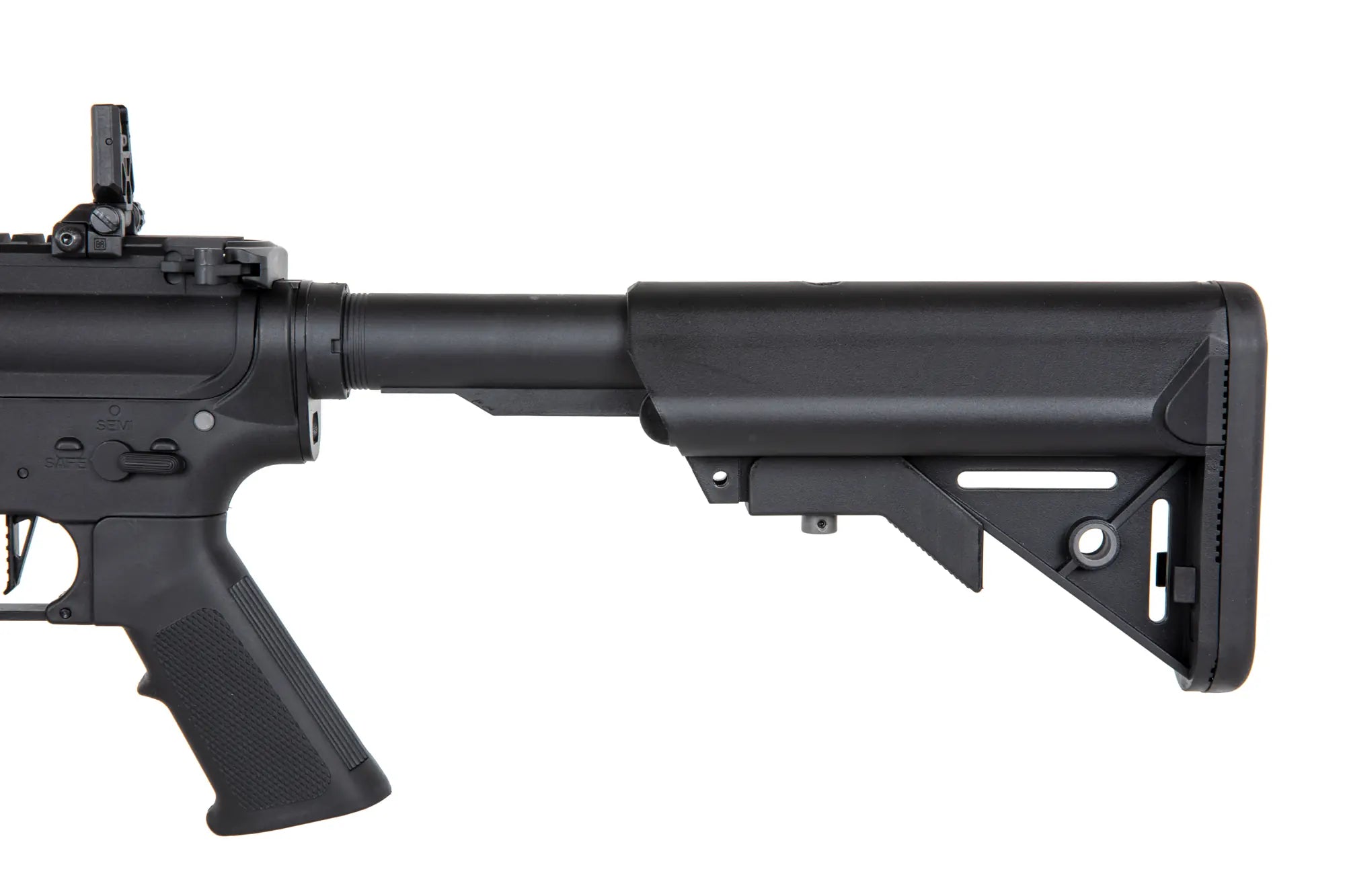

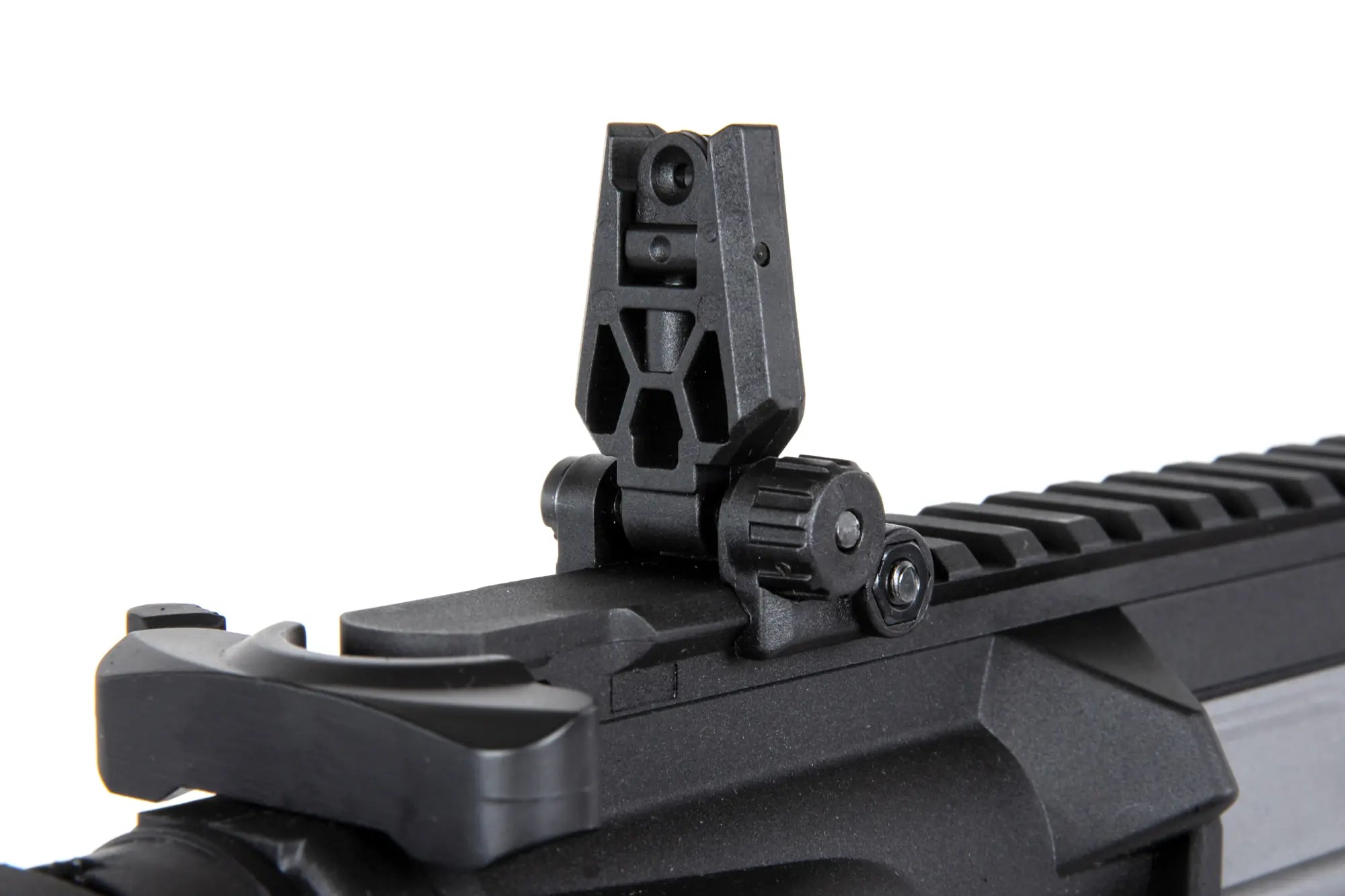

The SA-C10 CORE™ HAL ETU™ is a very compact airsoft gun, which despite its short dimensions is equipped with a large number of mounting surfaces for various accessories. The rail on top of the gun body has pre-installed foldable "flip-up" sights. It is possible to attach various optical sights to the rail on top of the body with a RIS/Weaver compatible mount. The gun's front handle is a RIS-compatible metal rail system. Thanks to the adjustable buttstock, the length of the gun can be adjusted according to the shooter's physical dimensions and preferences.
Under the muzzle flash suppressor at the end of the barrel, there are standard 14 mm left-handed threads (14mm CCW), which allows the installation of a silencer or a light streak device in place of the muzzle flash suppressor. (Note! Note that the barrel thread is inside the RIS foregrip, and that the weapon's long flash suppressor also partially covers the inner barrel of the weapon. For this reason, you may need to purchase an outer barrel extension for the weapon to attach a silencer or light streak device.
The new generation CORE HAL ETU models feature an advanced electronics unit installed inside the gearbox, replacing the mechanical switch surfaces familiar from older models with a MOSFET circuit controlled by a HAL sensor.
All CORE series rifles also feature a true Quick Spring Exchange (ESA™), which allows the CORE series rifles to be used on all playing fields. The ESA™ quick spring exchange allows you to change the power of the weapon according to the rules of the playing field in a matter of minutes. M90 and M120 level springs are included. The lower power spring is great for indoor games and the higher power spring is great for outdoor games.
CORE airsoft guns are designed to work with LiIon, LiPo and LiFe batteries. The factory-installed spring provides a muzzle velocity of approximately ~116m/s with a 0.20g bullet. An M90-type spring is also included, which allows for a lower muzzle velocity of approximately ~90m/s with a 0.20g bullet, making the gun a perfect choice for indoor arenas as well.
Note: Calibrating the HAL™ trigger before use:
This airsoft gun is equipped with the HAL ™ system and before using the gun, the trigger must be activated. Activation is done as follows:
 |
1. Turn the gun's fire selector to the "SAFE" position 2. Connect the battery to the gun 3. Wait three (3) seconds until the gun emits a "beep" sound. 4. Press the trigger all the way down for five (5) seconds until the gun emits a "beep" sound. This indicates that the trigger has been successfully activated. |
Read more:
HAL manual EN
HAL™ system features:
- Trigger detection using a magnetic sensor (Hall effect)
- Active brake
- Binary trigger
- Adjustable trigger sensitivity (5 levels, 20% - 100%)
- Adjustable piston pre-set (6 levels)
- Programmable fire selector
- AUTO setting (full auto, semi, 3-shot burst, 5-shot burst)
- SEMI setting (semi, binary, AUG, sniper)
- Easy programming with a trigger
- Low battery voltage warning
- Compatible with brushless motors
***The AUTO mode burst fire will first fire a 3-shot burst and then switch to full auto
CORE™ HAL ETU™ model series gearbox
The gearbox of the CORE™ HAL ETU™ model series has been completely redesigned and the corner rounding and geometry of the gearbox shells have been improved to increase the durability of the gearbox.
Gearbox features:
- Revised gearbox front end geometry
- 8 mm plain bearings
- Steel wheels
- Steel-toothed polycarbonate piston
- Steel switch lever
- The parts are designed to work with M140 springs (Atom Airsoft does not recommend using springs above 1.7J. We always recommend installing a Sorbothane during tuning so that the gearbox can withstand the increased strain even in the cold conditions of Finland )
Barrel and hop-up
- Rotary hop-up chamber
- 6.03 mm precision barrel (please use only high-quality airsoft bullets in the gun)
CORE quick spring replacement steps:
- Remove the trailer hitch by pulling it out of place on the buffer tube.
- Unscrew the buffer tube with a cross-head screwdriver.
- Open the plug under the buffer tube with an Allen key.
- Replace the spring with a new one.
- Put the back together again.
The entire process can be completed in less than two minutes.
Warranty
12 month factory warranty (warranty applies only to the weapon itself)
In the package:
- S-Mag Hi-Cap magazine, 380 bullets
- Quality Control QC Certificate
- Instructions
- Airsoft replica
- Additional spring M90 (inner play spring)
Battery and charger sold separately!
| Name: |
Specna Arms SA-C10 CORE™ HAL ETU™ ASG Carbine |
| Manufacturer: | Specna Arms |
| Output energy: | 1.3J / 0.9J |
| Starting speed (0.20g): | 114 m/s / 90 m/s with a 0.20g ball |
| Frame: | Composite / Nylon |
| Magazine size and type: | 380 bullets, hi-cap |
| Gearbox: | V2 |
| Hop up: | Adjustable, rotary |
| Blowback: | No |
| Weapon length: | 560-640,20mm |
| Inner barrel length: | 160mm |
| Weight: | 2205g |
| Power: | Electric |
| Compatible battery/gas type: | LiPo / Li-ion 11.1v with T-connector (Deans) |
| Engine: | Long |
| Fire forms: | One shot and multiple shots |
| Included in the package: | Weapon, magazine, m90 replacement spring |
