Description

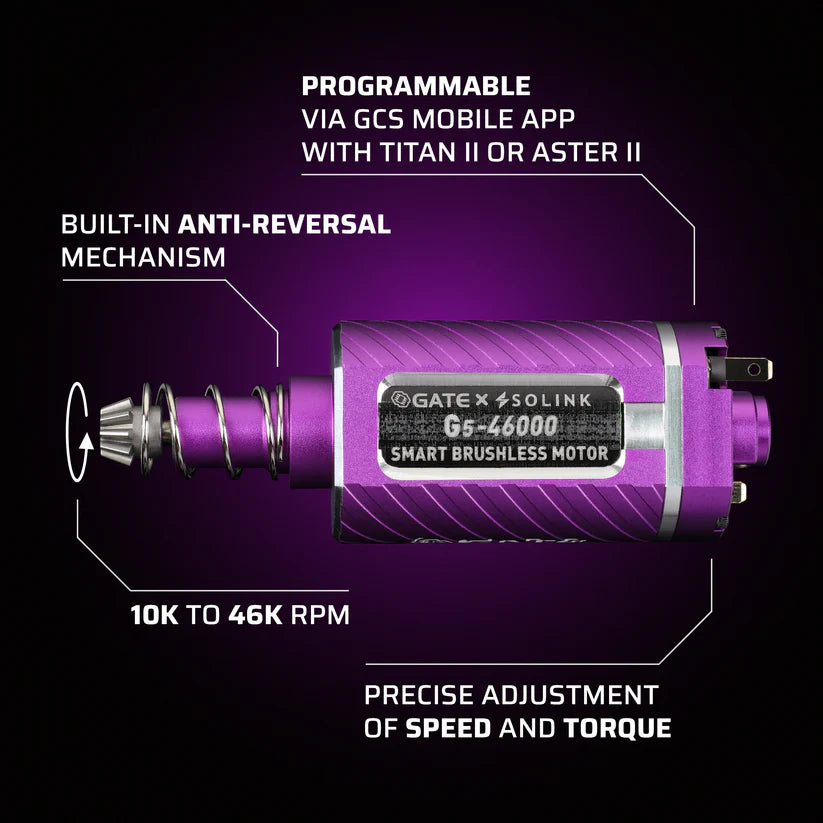

Revolutionary G5 Smart Brushless Motor - the world's first brushless motor programmable with the GCS mobile app with GATE TITAN II or ASTER II Bluetooth units!
The GCS app allows you to precisely adjust the speed from 10,000 to 46,000 RPM. Torque control allows you to tailor the motor to your specific gearbox configuration. Soft Start extends the life of internal gearbox components such as gears, while Fast Start provides the fastest possible trigger response.
You can change settings even during the game without a separate programming device. Uniquely, this motor also has a built-in anti-reversal mechanism, which significantly improves the operation of the gearbox. You can say goodbye to the problems of traditional anti-reversal locks and enjoy a quieter start and more precise pre-tune adjustment. The motor's very fast start-up guarantees an instant trigger response, while its high efficiency reduces battery consumption and motor heating. The high torque ensures compatibility with even the most demanding replica configurations, and the adjustable speed allows for a perfect fit with almost any gearbox.
The G5 Smart Brushless Motor is a great addition to the GATE ecosystem, communicating seamlessly with the ASTER II and TITAN II systems, ensuring perfect synergy.
Features:
- Developed in collaboration between Gate and Solink brands
- Motor programmable via ASTER II or TITAN II system
- Quieter running noise and more precise pre-tuning thanks to the built-in anti-reverse mechanism
- Wide speed adjustment range - from 10,000 to 46,000 rpm
- Motor shaft machined with CNC tools
- Highly durable motor terminal connections and efficient braking system
- D-type pinion gear
The first generation ASTER and TITAN systems do not support G5 Brushless motor settings.
| Parameter | Value |
|---|---|
| Without load (No Load) | |
| Speed | 45,800 RPM |
| Power | 3.2A |
| At maximum efficiency (Max Efficiency) | |
| Efficiency | 75.9% |
| Speed | 40,987 RPM |
| Torsion | 500 g/cm |
| Power | 24.9A |
| Power | 205W |
| At maximum power output (Max Output) | |
| Efficiency | 48.4% |
| Speed | 22,950 RPM |
| Torsion | 2,334 g/cm |
| Power | 105 A |
| Power | 519 W |
| Supply voltage range | 6 - 16.8V |
| Dimensions (Length x Width x Height) | 88.5 x 29.5 x 25 mm |
| Finished product weight | 141g |
The GATE G5™ Brushless motor and ASTER II Bluetooth / TITAN II Bluetooth give you complete control over your replica.
The T GCS app gives you the opportunity to:
- Control the speed and torque of the brushless motor even during gameplay
- Control your airsoft replica with your smartphone (Android, iOS) and PC (Windows or macOS)
- Easily adjust ASTER II Bluetooth and TITAN II Bluetooth settings during gameplay
- Updates ASTER and TITAN firmware - implement new features, improvements and fixes
- Run diagnostics and send reports
- View ball counters, electronic measurements and statistics
- Get the latest news from GATE Enterprise
- Retrieve real-time data from a smartwatch (Wear OS or watchOS)
- Avoid surprises with an empty magazine or a low battery
- Get new motor settings in the GCS app, where the G5 Smart Brushless motor is automatically recognized
- Read possible DTC error codes for engine-related problems
